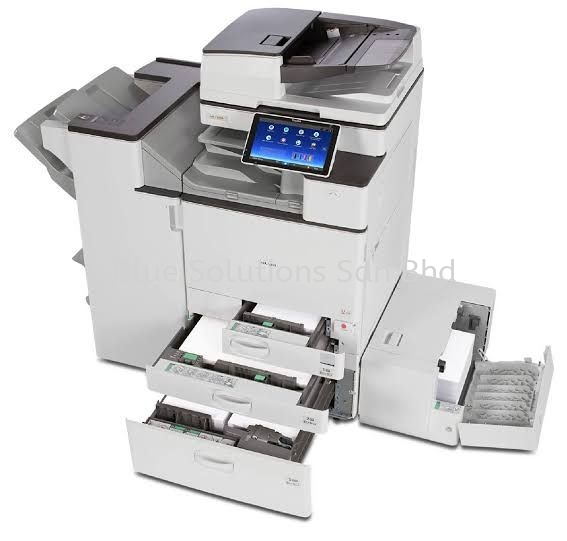

Ricoh Monochrome MP 4504/5504/6504 A3 Multifunctional Printer
Specifications
Details
The Ricoh MP 4504 / MP 5504 / MP 6504 Monochrome A3 Multifunction Printer series is purpose-built for high-speed black-and-white document production in demanding office environments. These machines focus on delivering exceptional efficiency, reliability, and sharp text output for businesses that prioritize volume printing over color.
Designed with enterprise productivity in mind, this series integrates fast printing, high-speed scanning, and robust paper handling into one centralized system. With Ricoh’s Smart Operation Panel, users benefit from an intuitive interface that simplifies complex workflows and enhances day-to-day usability.
Ideal for finance departments, legal firms, education institutions, and administrative offices, these models provide consistent performance under heavy workloads. The key difference between them lies in output speed, allowing businesses to scale productivity based on their operational demands.
| Specification | MP 4504 | MP 5504 | MP 6504 |
|---|---|---|---|
| General | |||
| Functions | Print, Copy, Scan, Optional Fax | Print, Copy, Scan, Optional Fax | Print, Copy, Scan, Optional Fax |
| Print Speed | 45 ppm | 55 ppm | 65 ppm |
| Warm-up Time | Approx. 21 sec | Approx. 21 sec | Approx. 21 sec |
| First Copy Speed | 3.1 sec | 2.9 sec | 2.7 sec |
| Memory | 2 GB | 2 GB | 2 GB |
| Storage | 320 GB HDD | 320 GB HDD | 320 GB HDD |
| Operation Panel | 10.1" Smart Panel | 10.1" Smart Panel | 10.1" Smart Panel |
| Printer | |||
| Print Resolution | 1200 × 1200 dpi | 1200 × 1200 dpi | 1200 × 1200 dpi |
| Duplex Printing | Standard | Standard | Standard |
| Max Paper Size | A3 | A3 | A3 |
| Paper Handling | |||
| Standard Capacity | 1,200 sheets | 1,200 sheets | 1,200 sheets |
| Maximum Capacity | 4,700 sheets | 4,700 sheets | 4,700 sheets |
| Paper Weight | 52 – 300 gsm | 52 – 300 gsm | 52 – 300 gsm |
| Scanning | |||
| SPDF Capacity | 220 sheets | 220 sheets | 220 sheets |
| Scan Speed | Up to 180 ipm | Up to 180 ipm | Up to 180 ipm |
| Connectivity | |||
| Network | Gigabit Ethernet | Gigabit Ethernet | Gigabit Ethernet |
| Wireless | Optional | Optional | Optional |
| Physical | |||
| Dimensions | 587 × 685 × 963 mm | 587 × 685 × 963 mm | 587 × 685 × 963 mm |
| Weight | Approx. 95 kg | Approx. 95 kg | Approx. 95 kg |
Frequently Asked Questions (FAQ) – Ricoh MP 4504 / 5504 / 6504
